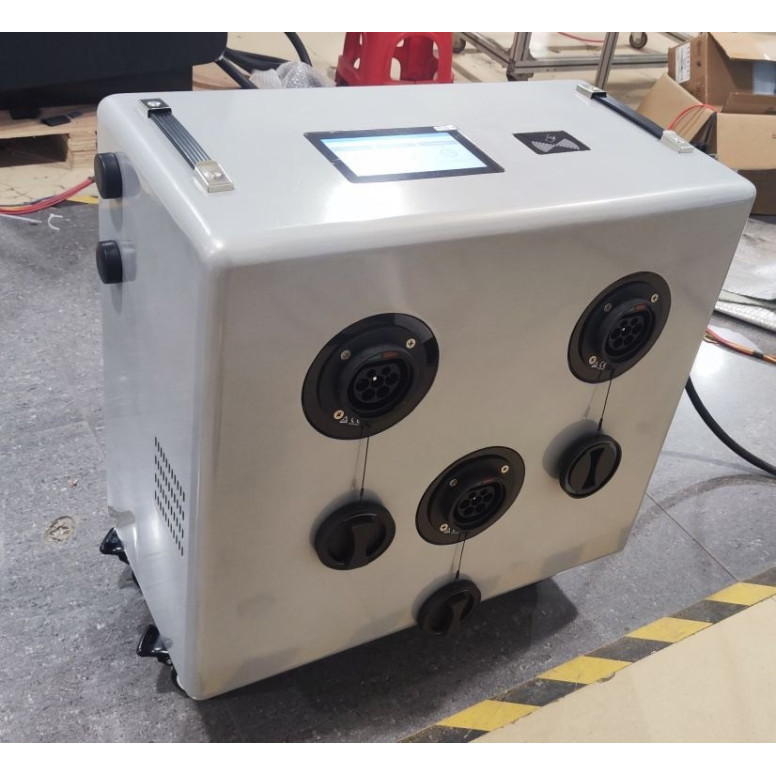

Mobile and portable three-phase charging station 3 x 7.2 kW T2 sockets

22 kW portable AC charging station - 3 Type 2 sockets

This three-phase AC charging station has been designed to provide a portable, robust and efficient solution for recharging electric and plug-in hybrid vehicles. Compact and rugged, it is ideal for temporary use at events, business sites or as a back-up solution.

When connected to a 400 V three-phase power supply, it delivers up to 22 kW total power, i.e. 3 simultaneous outputs of 7.2 kW each via Type 2 sockets (IEC 62196).

Equipped with carrying handles, rubber stabilizing feet and an IP54 enclosure resistant to shock, corrosion and UV, it combines mobility and reliability. An emergency switch and several built-in protections guarantee a high level of safety.

Compatible with all current EV and PHEV models, it complies with CE and IEC 61851-1 international standards.

Key features

• Total power: 22 kW (3 x 7.2 kW - 32 A)

• Input: 3 phases, 400 V - 32 A - 50/60 Hz

• Output: 3 Type 2 sockets (IEC 62196)

• Charging mode: Mode 3 (IEC 61851-1)

• Cables: 5 m long

• IP54 protection - waterproof and dustproof

• Temperature range: -30°C to +50°C in operation

• Integrated safety:

  • over/undervoltage protection

  • overload and short-circuit protection

  • protection against sensitive AC/DC current leakage

  • protection against overheating and atmospheric surges

  • emergency stop button

• LED load statusindicators (integrated light halos)

• Communication: WiFi + OCPP 1.6 protocol for connected management

• Certifications: CE - IEC 61851-1 / EN 61851-22 compliant

• Structure: flame-retardant, corrosion-resistant and UV-stabilized

• Easy transport & installation: integrated handles, rubber feet
