HUD head-up display LCD for Tesla Model 3 and Tesla Model Y

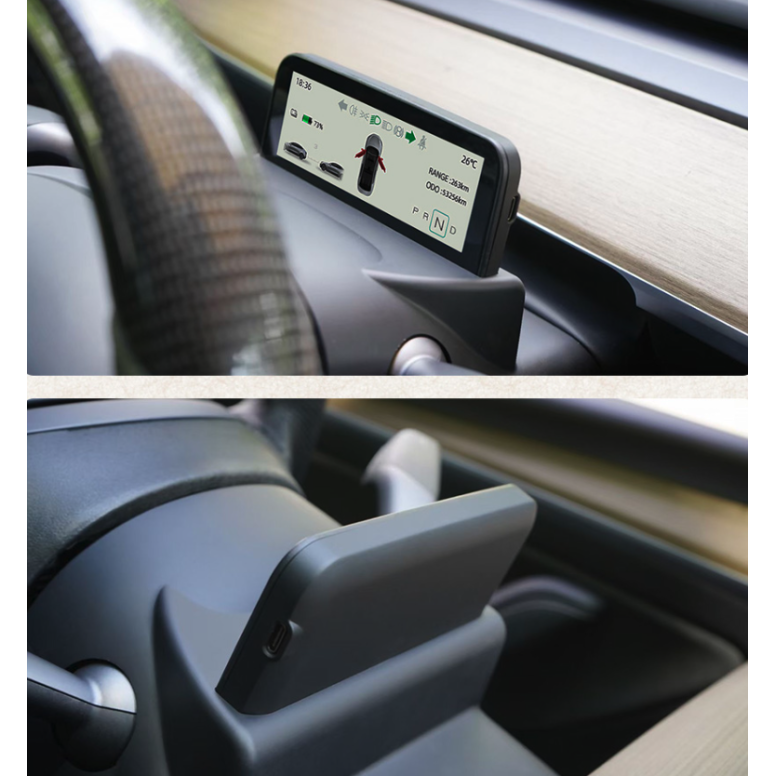

Enhance your driving experience with our 5-inch LCD head-up display for Tesla Model 3 and Tesla Model Y . Designed to fit seamlessly into your vehicle, this screen provides a clear, precise display of essential information, directly behind the steering wheel. With an elegant design echoing the original, it perfectly matches the aesthetics of your Tesla.

Quick and easy installation:

Our LCD head-up display HUD is designed to replace the plastic part that covers the back of the steering wheel, and plugs directly into the socket on the driver's side door pillar for power, and into the socket on the passenger's side door pillar for driving information. Installation is quick and easy, and requires no modification to your vehicle.

RHD and LHD compatibility:

Whether you have a Tesla Model 3 or Model Y with right-hand drive (RHD) or left-hand drive (LHD), our HUD LCD head-up display is compatible with both configurations. So you can take advantage of this accessory whatever your vehicle model.

Automatic night and day mode:

To guarantee optimum visibility in all circumstances, the HUD LCD head-up display automatically adjusts brightness between night and day modes. So you don't have to worry about changing settings according to outside light conditions.

Easy update via Type-C port:

The LCD heads-up display HUD is equipped with an integrated Type-C port, enabling easy software upgrades via USB stick. So you can benefit from the latest features and enhancements without having to replace the whole unit.

How do I update my HUD?

Use a USB key, then format it in FAT32 format.

2. Unzip the tsl-d227 file, then copy the can-app.bin file to the USB stick.

3. Insert the USB key into the display, and the update will start automatically.

5. If your F68 does not update :

Plug in the USB key, switch the motor off, then on again.

Then click on "CAN point upgrade" in the menu to start the update.

6. During the update process, do not switch off the motor or remove the USB key.

Update file : LINK

Integrate a settings table by pushing the right-hand wheel for 3 seconds to the right:

If, after installation, you have a problem with the two position indicators, please change the CAN position from 1 to 2.

You can also set the time zone, display theme, units of measurement for temperature, tire pressure and mileage, and language (Chinese or English).

Video instructions for installation :
