Set of 4 ASA ZR3 alloy wheels for the Xpeng G9
Reference
60AAS00906
€2,389.08
Payment in several instalments :
Set of 4 ASA ZR3 wheels for the Xpeng G9, available in 2 sizes and 3 finishes.
Fast, free delivery
Free delivery for orders over €150. Orders shipped from France D-day.
+150,000 drivers equipped since 2019
4.4/5 ⭐ on Google and Trustpilot — the trust of an established European brand.
Bilingual customer service
Customer service by e-mail Monday to Friday. Response within 24 to 48 hours.
Free returns
Free returns within 30 days, excluding wheels, full wheels and body kits.
.svg){kind=small}
Secure payments
SSL certificate and Paypal technology. Free 3x and 4x payments with Scalapay and Paypal
Shop with peace of mind
2-year minimum warranty. Responsive support in case of defects.

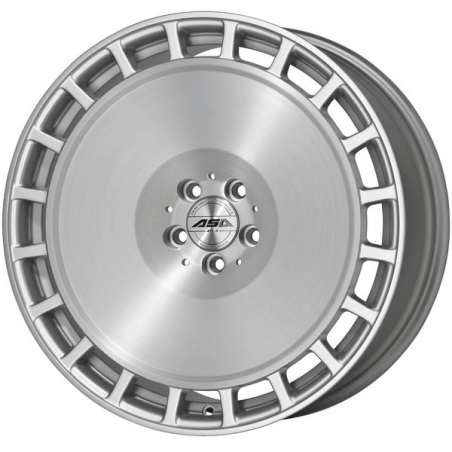

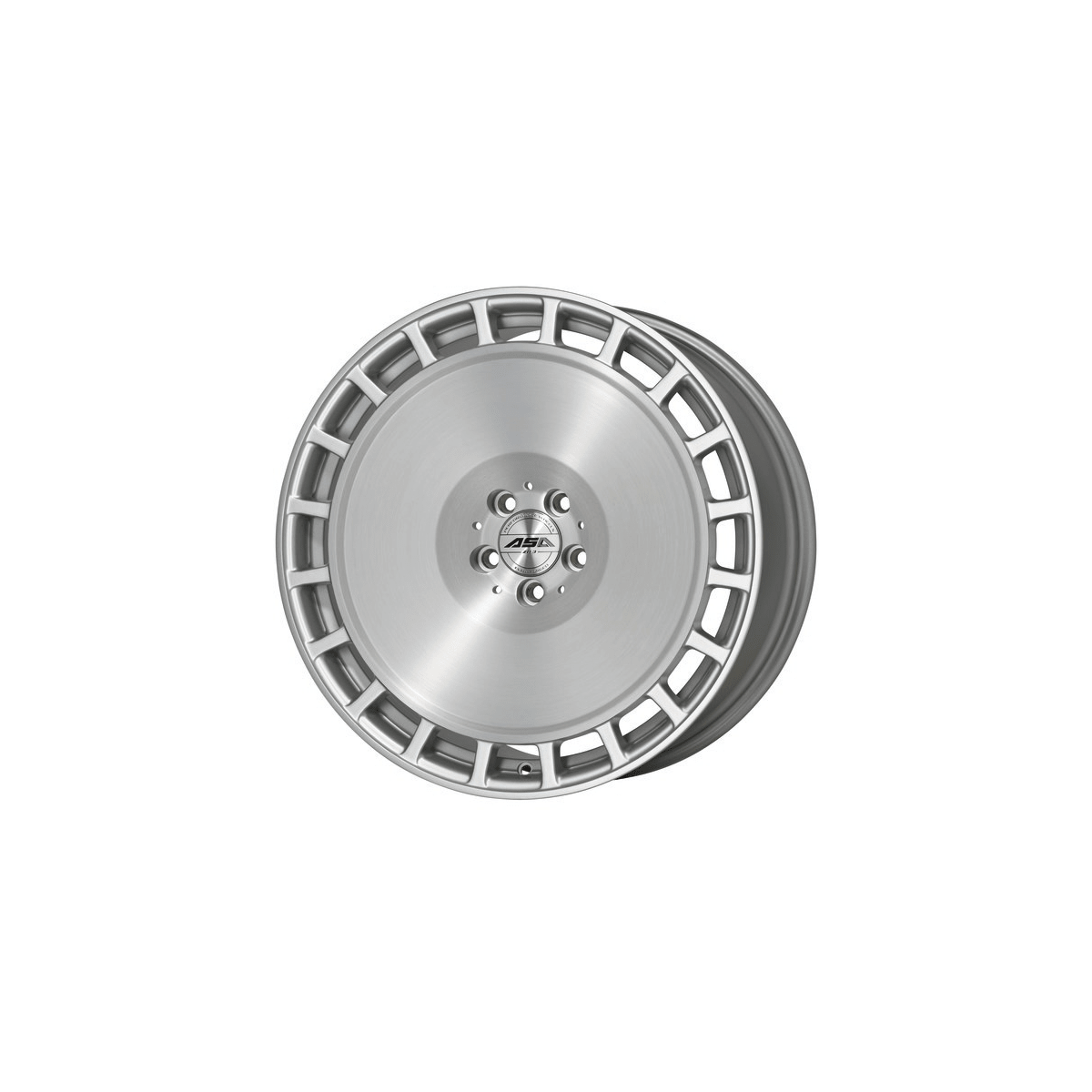

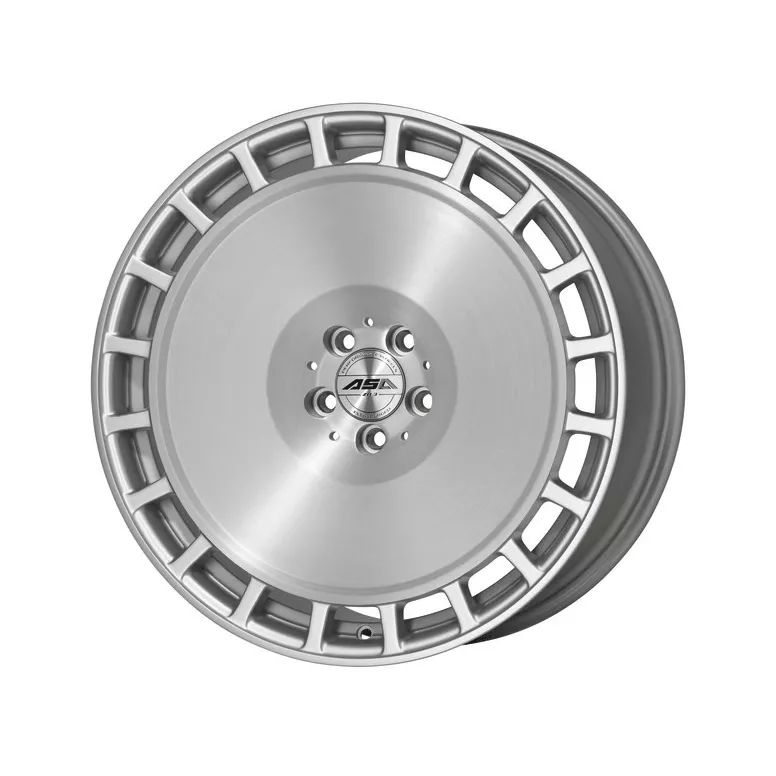

ASA ZR3 Wheels for the Xpeng G9 — 2 sizes, 3 finishes
The ASA ZR3 are offered here in set of 4 rims for the Xpeng G9, in 20" · 21" and in 3 finishes. Center-to-center distance 5x112, direct mounting. Made of cast aluminum According to JWL and VIA standards, they offer an excellent balance of durability and value.
Compatibility of ASA ZR3 Rims with the Xpeng G9
Versions compatible with this size
XPENG G9 — G9 (2024+)Why choose ASA ZR3 wheels for your Xpeng G9 ?
- JWL/VIA-certified cast aluminum : proven durability for everyday use
- Nuts and centering rings included : The 4 centering rings (73.1 → 64.1 mm) and the mounting nuts are included in the set—no need to order anything else
- 3 finishes : HIGH-GLOSS BLACK · HYPER SILVER BRUSH · MIRROR-POLISHED
- 2 approved sizes, 5x112 bolt pattern: direct mounting, without a spacer
- Sold in sets of 4, each wheel individually packaged and protected
Made of cast aluminum
Aluminum is cast in a mold and then machined: this is the most common process, and the one that offers the best strength-to-price ratio. Each wheel is inspected according to Japanese standards JWL and VIA.
| Sizes available depending on your Xpeng G9 | |
|---|---|
| 20" | XPENG G9 — G9 (2024+) |
| 21" | XPENG G9 — G9 (2024+) |
| Approval by Dimension | |
|---|---|
| 20" | JWL / VIA No TÜV report for this size |
| 21" | JWL / VIA No TÜV report for this size |
| Technical Specifications for ASA ZR3 Rims | |
|---|---|
| Make / Model | ASA ZR3 |
| Manufacturing Process | Cast aluminum |
| Material | Lightweight aluminum alloy |
| Diameters | 20" · 21" |
| Dimensions | 20" 21" |
| Center-to-center distance (PCD) | 5 x 112 mm |
| Center bore | 73.1 mm |
| Colors | HIGH-GLOSS BLACK · HYPER SILVER BRUSH · MIRROR-POLISHED |
| Screws and Bolts | Mounting nuts included |
| Centering | 4 centering rings (73.1 → 64.1 mm) included |
| Certifications | JWL / VIA |
| Packaging | Set of 4 rims |
| Shipping | Shipped separately from the rest of the order |
Certifications and Compliance
These rims are certified JWL and VIA, which guarantee the rim's structural strength in accordance with Japanese standards. No TÜV report is currently available for this part number.
Installation: What to Expect
The order is delivered complete : The 4 centering rings (73.1 → 64.1 mm) and mounting nuts are included; no additional parts need to be ordered. Allow 30 to 45 minutes for all four wheels using a jack and a torque wrench. Follow the torque specifications listed in your vehicle’s manual and retighten the fasteners after driving the first few kilometers.
Tire installation should be performed by a properly equipped shop, with a balance check after installation.
Swiss Type Approval Certificate and Delivery
Swiss customers : A specific certification may be issued. Add the "Swiss Certification" product to your cart when ordering your rims, then provide us with the requested information. Once the application is complete, the certificate is Shipped by mail within approximately 5 business days.
Each wheel is individually packaged, protected on both sides, and fully wrapped in plastic. This product is shipped separately from the rest of your order.
| The Different Manufacturing Methods | |||||
|---|---|---|---|---|---|
| Method | Method | Weight | Resistance | Price | Balancing |
| Casting ZR3 |
Aluminum cast in a mold | ★★☆☆☆ | ★★☆☆☆ | ★★★★★ | ★★☆☆☆ |
| Flow Forming | Aluminum cast, then heated and machine-drawn | ★★★★☆ | ★★★☆☆ | ★★☆☆☆ | ★★★☆☆ |
| Hybrid Forged | Casting followed by a forging step (Concaver process) | ★★★★☆ | ★★★★☆ | ★★★☆☆ | ★★★★☆ |
| Semi-Forged | Machined-from-solid front panel + cast bowl | ★★★★★ | ★★★★☆ | ★★☆☆☆ | ★★★★☆ |
| Forged | Wheel fully machined from a solid block | ★★★★★ | ★★★★★ | ★☆☆☆☆ | ★★★★★ |
Frequently Asked Questions
Are cast aluminum wheels reliable ?
Yes. This is the most common process, including for original equipment. JWL and VIA certifications validate the rim's performance in impact, bending, and fatigue tests.
What size should I choose for my Xpeng G9 ?
The size chart above lists the compatible versions and model years for each size. Select the size that matches your vehicle from the drop-down menu, then select the trim level.
Should I order nuts, washers, or spacers ?
No. The Fastening nuts and the 4 centering rings, 73.1 → 64.1 mm are included in the set.
Are the tires and pressure sensors included ?
No, this set includes only the 4 rims.
