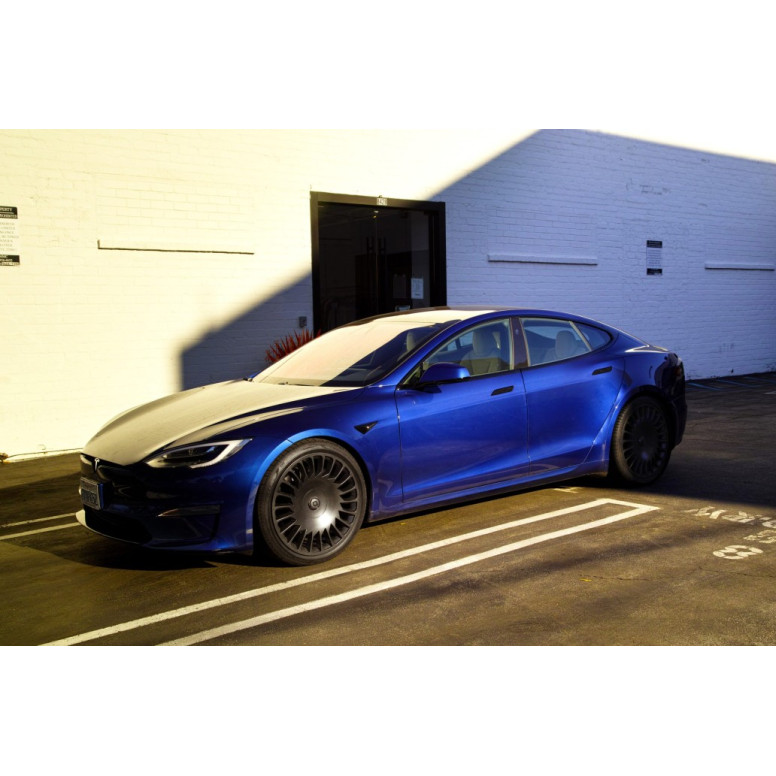

Set of 4 The New Aero The Razor 19" or 21" wheels for Tesla Model S

Wheels The New Aero Razor for Tesla Model S — aerodynamics as a starting point

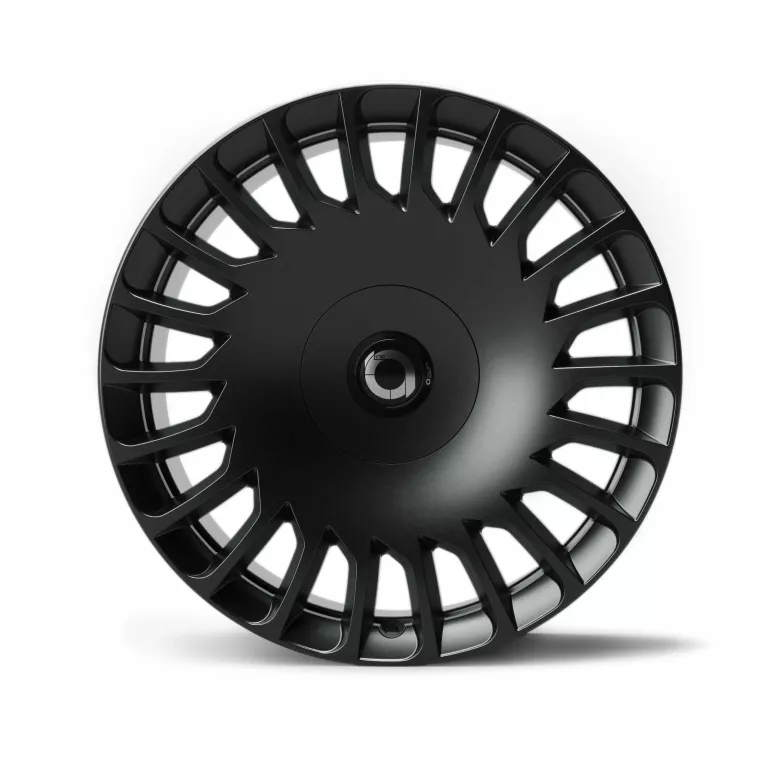

The Razor from The New Aero are not a wheel design to which aerodynamic features have been added: it’s exactly the opposite. A smooth, closed outer surface, a flat back, streamlined vents designed not to disturb the airflow, and a construction directional where the left and right wheels are mirror images of each other. Two diameters to choose from—the 19-inch Flow-Formed, manufactured in Germany from at least 70% recycled alloy, and the 21-inch forged — available for the two generations of Model S : the Model S classic from 2012 to 2021, and the Model S redesigned starting in 2021, Plaid understood.

Why Choose These Rims The New Aero Razor for your Tesla Model S ? ?

• A wheel designed with aerodynamics in mind : Overall vehicle drag reduced by 9.9% in EXA simulations compared to the original Turbine wheel
• Original nuts Tesla preserved : mounting dimensions identical to those of the rim Tesla matching, no spacers, summer/winter conversion in just a few minutes
• Two designs to choose from : 19-inch flow-formed (Germany, at least 70% recycled alloy) or 21-inch forged
• Directional Construction : 2 left rims and 2 right rims (mirrored), lateral force reduced by 94%
• Sold in sets of 4, with nut covers, TNA-logo hub caps, and a TNA Designbox tool kit

19-inch flow-formed wheels, 21-inch forged wheels

The Razor V2 19-inch is produced in Flow Forming. After casting, the rim flange is heated and then drawn by rollers: the metal becomes denser, allowing material to be removed while maintaining the same strength. The weight savings amount to up to 30% compared to a conventional cast wheel. It is manufactured in Germany using at least 70% recycled alloy.

The Razor 21 inches is forged, made of 6061-T6 aluminum: the material is compressed and then machined from solid, resulting in the highest mechanical strength for the lightest weight. It features a powder-coated finish suitable for winter use and always employs an offset configuration with wider rear rims than the front ones.

Why an aerodynamic rim is not a “turbine” rim

When designing an aerodynamic wheel, the goal is to move as little air as possible — A turbofan engine does exactly the opposite. Air drag is proportional to the square of the relative speed between the object and the air: doubling the speed quadruples the drag and the energy consumed. However, on a rotating wheel, the point in contact with the ground has zero airspeed, while the center of the wheel moves forward at the car’s speed: The top of the wheel therefore moves at twice the vehicle's speed. It is this area—along with the outer surface that is exposed to the airflow coming from the front of the vehicle—that determines the outcome. It must remain as smooth and sealed as possible.

The second source of energy loss is the resistance created by the rotation itself: spinning a fan requires more energy than spinning a disk. On the Razor, so the inside of the rim is flat and smooth, and the ventilation slots are shaped so as not to disrupt the airflow. The manufacturing technique also allows the left and right wheels to be oriented toward the car: No unwanted lateral force is generated, and the wake behind the vehicle remains symmetrical.

Then there’s weight, which is a key factor in both acceleration and braking—but you can’t judge a rim by its weight alone. Mass located far from the center of rotation is far more of a hindrance than mass located close to the hub, just like a figure skater who speeds up her spin by pulling her arms in without expending additional energy. With the same design, a forged rim weighs 25 to 30% less than a cast wheel.

These decisions were carefully considered. During the development of the Model S, , Tesla entrusted EXA with the numerical fluid dynamics simulation—a virtual wind tunnel. The New Aero had a 3D scan made of a Model S equipped with the original Turbine wheel, then supplied it to EXA as a reference. The result: the Razor reduces the drag of 9.9% of the vehicle's total weight and the lateral force of 94%, whereas the Turbine rim features superior asymmetric lift of 28% to that of the Razor. In practice, this results in a quieter ride, better stability, and improved performance.

Offset Wheel Setup and Directional Tires: What It Means

A single configuration consists of four identical rims : the 19-inch model from the Model S 2012–2021. The other three are in offset assembly, with the rear rims wider than the front ones—just like the original setup. You'll receive 2 front rims and 2 rear rims, which should not be swapped.

In any case, the rims are directional : The left and right wheels are mirror images of each other, which cancels out unwanted lateral forces and creates a symmetrical wake behind the car. Each set therefore contains 2 left rims and 2 right rims, each marked and bearing distinct approval numbers. The directional turbofan-style design also expels hot braking air as soon as the wheel rotates, improving disc ventilation.

Certifications and Compliance

Each wheel rim The New Aero is laser-engraved with its approval number(s), inside the vent hole opposite the valve cap. The left and right wheels have different numbers, since they are directional, and the numbers are also printed on the front of the rim.

On the Model S 2012–2021, the 19-inch set features theKBA certification and the 21-inch set from theECE approval. On the Model S 2021+, the 19-inch set is ECE- and KBA-approved ;the 21-inch set has the necessary certifications to be driven legally in both Long-Range mode and Plaid across all markets Tesla, and it comes with a TÜV Parts Certificate for Germany, Austria, and Switzerland. Since the mounting dimensions are the same as those of the rim Tesla Since this is the case, no additional administrative steps are required.

Installation: What to Expect

The Original nuts Tesla are reusable : No special fasteners are required, which simplifies seasonal tire changes. Allow 30 to 45 minutes for all four wheels using a jack and a torque wrench. Follow the torque specifications listed in your vehicle’s manual and retighten the fasteners after driving the first few kilometers. Since the rims are directional, check the left/right markings—and, on offset sets, the front/rear markings—before installing each wheel.

Tire installation should be performed by a repair shop equipped with the appropriate machinery, including a balance check after installation. Keep the certification report in the vehicle if required by your country's regulations.

Add tires to your order

Choose your tires using the links below. If you'd like us to install them for you, select the option "Installation on purchased rims" and check the box "Yes" : We assemble and balance the wheels at our partner workshop before shipping. Please note the offset mounting: except for 19-inch wheels on Model S For the 2012–2021 model years, you'll need two different tire sizes—one for the front and one for the rear.

Swiss Type Approval Certificate and Delivery

Swiss customers : A specific certification can be issued. Add the "Swiss Certification" product to your cart when ordering your rims, then provide us with the requested information. Once the application is complete, the certificate is Shipped by mail within approximately 5 business days.

LINK TO SWISS CERTIFICATE

Each wheel rim is individually packaged, protected on both sides, and fully wrapped in plastic. This product is shipped separately from the rest of your order.

Frequently Asked Questions

What is the difference between the Razor V2 19-inch and the Razor 21 inches ?

The manufacturing process. The 19-inch wheel is produced using flow forming—a process in which a cast wheel is heated and stretched by rollers, resulting in a wheel that is up to 30% lighter than a conventional cast wheel—in Germany, using at least 70% recycled alloy. The 21-inch wheel is forged and machined from a solid block of 6061-T6 aluminum to achieve the highest strength-to-weight ratio.

How do I know which version to choose for my Model S ? ?

It all depends on your vehicle's model year. The Model S 2012–2021 is available with 19-inch wheels in 8.5 x 19 ET35, in four identical rims, or 21-inch wheels in an offset configuration of 8.5J front / 9J rear. The Model S 2021+, , Plaid This model comes with wider rims: 9.5J in the front and 10.5J in the rear, available in both 19- and 21-inch sizes. Select your model generation from the product options: the dimensions are not interchangeable between the two.

Do we need special nuts or spacers ?

No. The mounting dimensions are the same as those of the rim. Tesla corresponding: the original nuts Tesla are reusable; the original hub cap can be reinstalled in place of the one with the TNA logo, and no spacer is needed.

Are the tires and pressure sensors included ?

No, this set includes only the 4 rims and their finishing accessories. Tires must be ordered separately using the links above, with the option to have them mounted and balanced at our partner shop. For offset configurations, be sure to order two different sizes—one for the front and one for the rear.
